Optional stem lengths

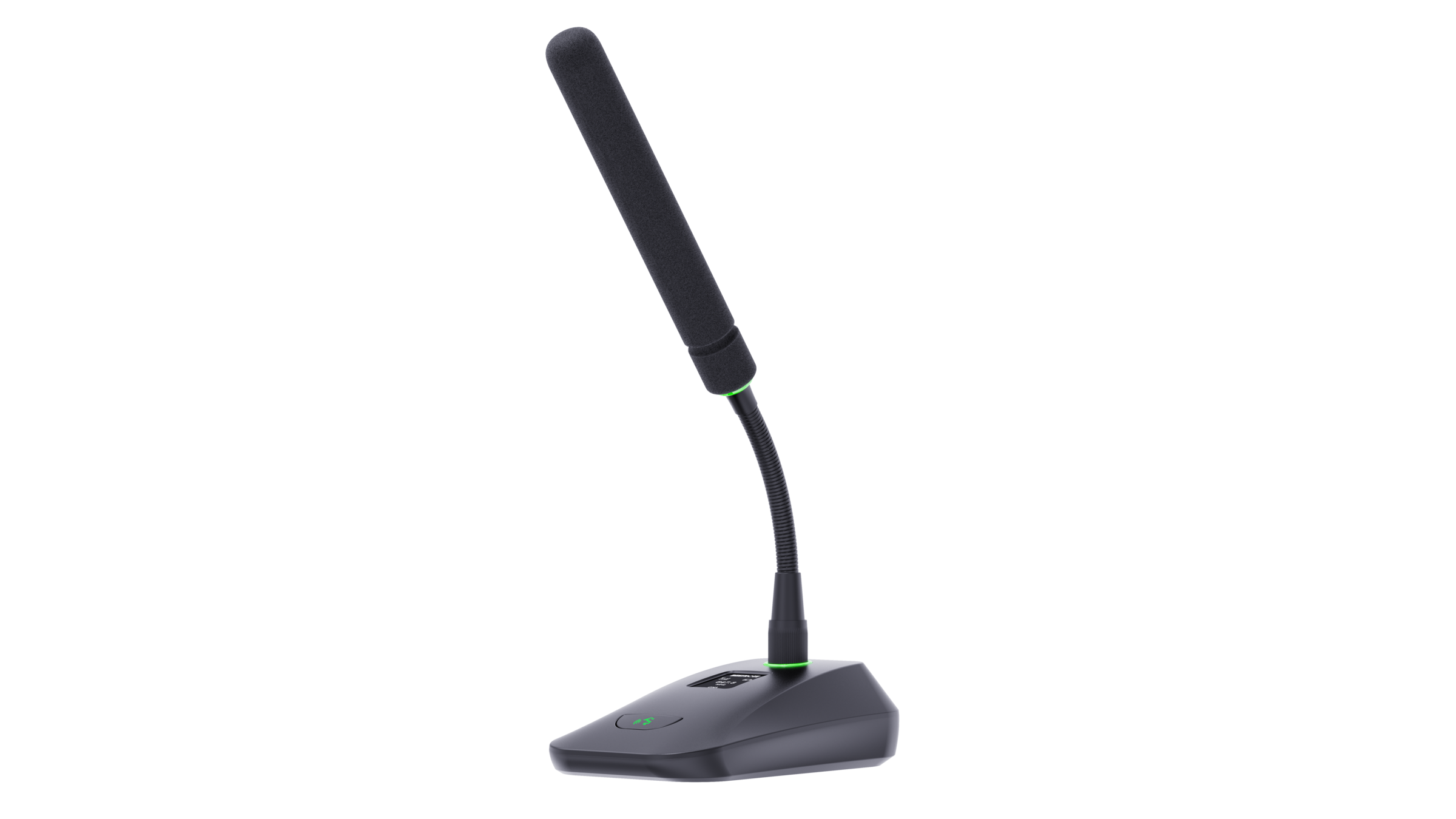

Choose a 415 mm gooseneck or 245 mm shotgun stem for the application.
Microphones
Model JI150D · wireless
Wireless Desktop Gooseneck Microphone
Wireless desktop microphone with selectable directivity, LCD status display and optional stem lengths.
JI150D
01 / 02
PatternsFive selectable
MicrophoneCardioid condenser
Frequency response40 Hz - 20 kHz
Gooseneck415 mm
Battery2000 mAh lithium
Overview
Flexible desktop speech capture for changing room layouts.
The Jistron JI150D is a wireless desktop microphone with a stable tabletop base, status LCD and selectable microphone directivity.
Five polar patterns and optional 415 mm gooseneck or 245 mm shotgun stems adapt the unit to a variety of speaking positions. Its rechargeable battery supports up to 15 hours of speaking time and 30 hours standby.
Engineering
Key features
Five polar patterns
Omni, Wide Cardioid, Cardioid, Supercardioid and Figure-8 patterns are selectable.
Voice-focused tuning
A 40 Hz - 20 kHz response provides clear and natural spoken audio.
Variable directivity
Digital pattern selection adapts pickup coverage without changing the base unit.
LCD status display
Battery, ID, status, sensitivity, speaking time and connection information remain visible.
Long battery operation
Provides up to 15 hours of speaking time and 30 hours standby.
Flexible charging
USB Type-C and compatible external charging are supported.
Professional desktop base
The weighted tabletop form supports stable daily conference use.
Operational functions
Control designed into the unit.
BatteryID AddressMic StatusSensitivitySpeaking TimeConnection
Technical data
Specifications
Technical data for model JI150D.
Microphone & audio
- Product type
- Wireless desktop gooseneck microphone
- Microphone type
- Cardioid condenser
- Selectable patterns
- Omni · Wide Cardioid · Cardioid · Supercardioid · Figure-8
- Frequency response
- 40 Hz - 20 kHz
- Sensitivity
- -32 dBV
- Distortion
- < 1%
Wireless & display
- RF output
- ≤ 10 dBm reference
- LCD information
- Remaining battery · ID · microphone on/off · sensitivity · speaking time · connection
Power & physical
- Battery
- 2000 mAh lithium battery
- Active power
- 0.5 W
- Standby power
- 0.25 W
- Speaking time
- Up to 15 hours
- Standby time
- Up to 30 hours
- Charging
- USB Type-C or external charger · 5 V / 2 A
- Base dimensions
- 130 × 76 × 41 mm
- Stem options
- 415 mm gooseneck · 245 mm shotgun
- Weight
- 515 g
Ordering information
- Model
- JI150D
- Description
- Wireless desktop microphone with selectable directivity
Product documentation
JI150D Datasheet
Complete directivity, display, battery, stem and physical specifications for the JI150D.
