Model JI20M · wired

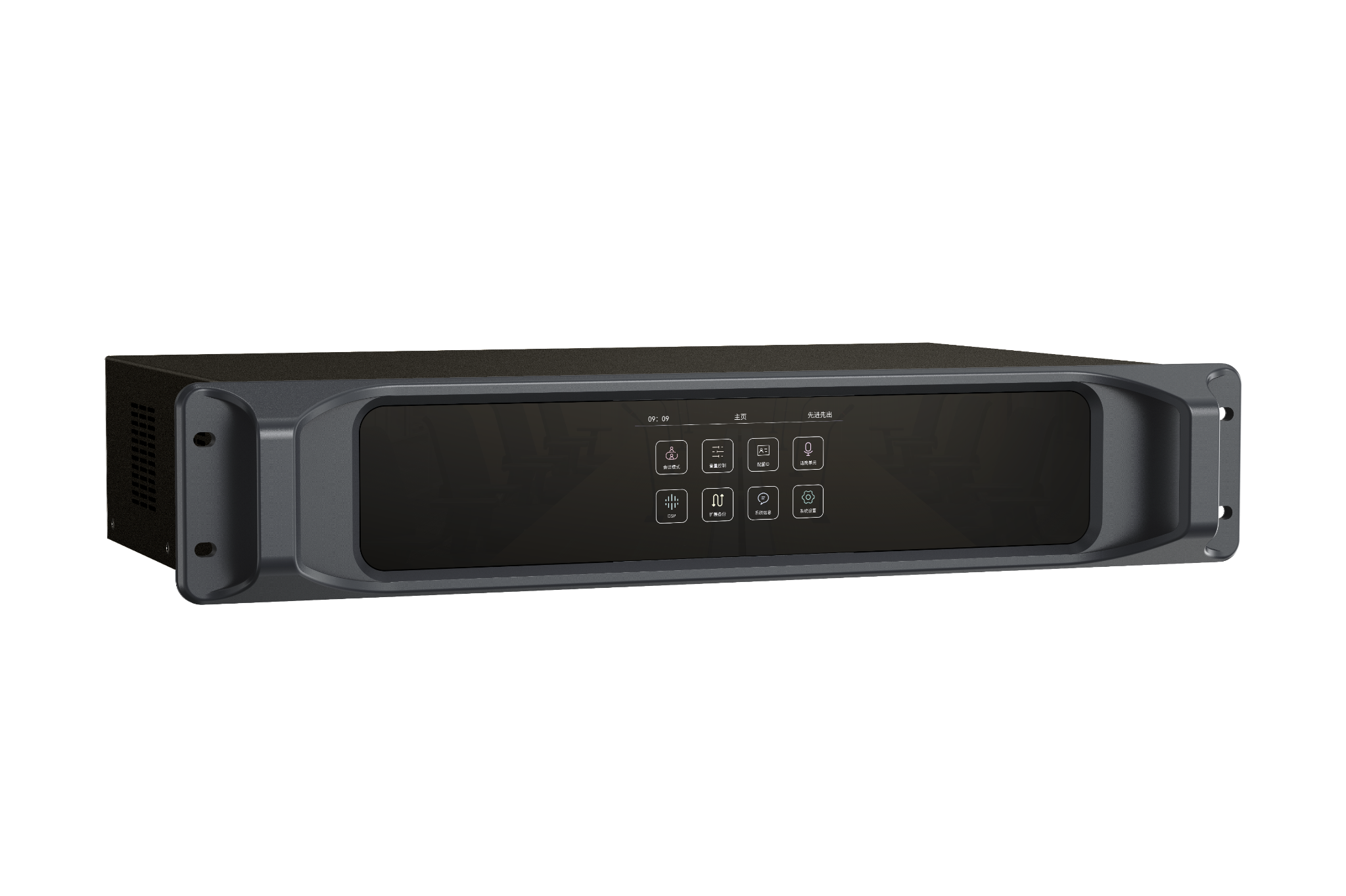

Digital Convergence Wired Conference Host
Digital network conference host with wired and wireless convergence, AOIP/TCP-IP networking, ANC/AFC processing and touchscreen control.
JI20M
01 / 03
ArchitectureDigital network
NetworkAOIP · TCP/IP
Control4.3-inch touchscreen
Power110-240 V
Dimensions483 × 275 × 88 mm
Overview
Wired and wireless conference convergence through one network host.
The Jistron JI20M is a Digital Convergence Wired Conference Host developed on a digital network architecture for converged wired and wireless conference applications.
It integrates AOIP network audio and TCP/IP networking, supports flexible addition of wireless microphone units, and includes machine-learning ANC noise reduction, AFC feedback suppression, camera tracking, voting functions, ring backup and three seamless audio backup paths.
Engineering
Key features
AOIP + TCP/IP networking
Network audio and management are integrated through AOIP and TCP/IP network architecture.
ANC noise reduction
Embedded machine-learning logic identifies noise and activates automatic noise reduction.
Three seamless audio backups
Microphone digital-analog backup, ring backup and host digital-analog backup are supported.
AFC feedback suppression
Environmental learning identifies feedback and activates AFC before system howling develops.
4.3-inch touchscreen
The front-panel touchscreen supports host management, settings and status display.
Camera tracking support
Works with a camera tracking host, panoramic presets and central control integration.
Voting & sign-in functions
Supports sign-in, voting and result projection to a large screen.
Operational functions
Control designed into the unit.
5 Speech Modes1 / 2 / 4 / 6Hot PlugVotingCamera TrackingPC SoftwareRing Backup
Technical data
Specifications
Technical data for model JI20M.
System & control
- System type
- Digital convergence wired conference host
- Network architecture
- Digital network architecture
- Communication interface
- TCP/IP
- Network audio
- AOIP network audio module
- Front panel control
- 4.3-inch touchscreen
- Speech modes
- Normal · FIFO · Free · Application · Voice Wake-up
- Speech unit limit
- 1 · 2 · 4 · 6 active units; chairman and VIP units unrestricted
- Camera tracking
- Camera tracking host · panoramic presets · central control
- PC software
- Meeting preparation · management · voting · microphone control

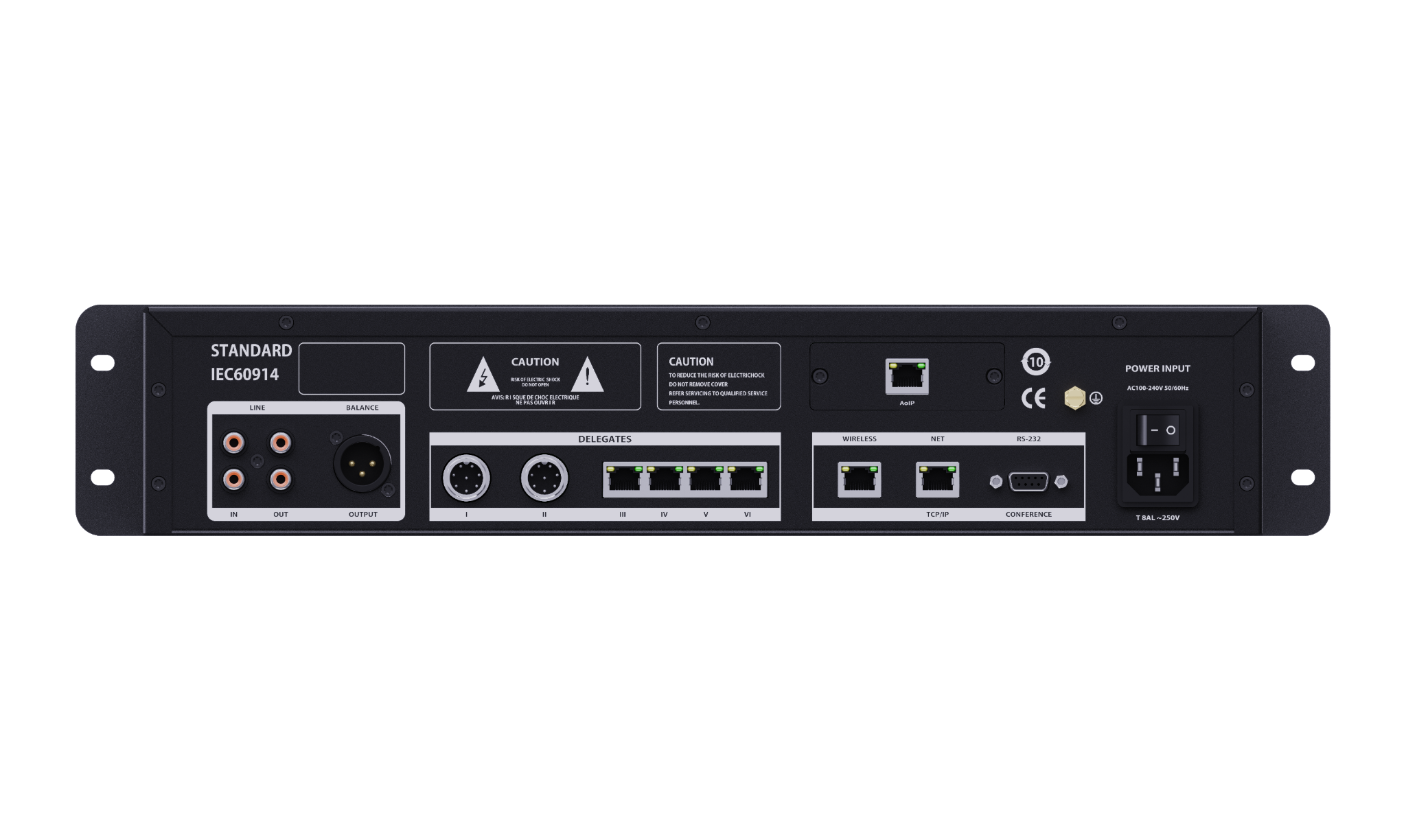

Audio & connectivity
- Input interface
- RCA socket (2-way)
- Output interface
- RCA socket 2-way · XLR socket 1-way · 8P aviation socket 5-way
- External line I/O
- 2 audio external line inputs · 2 audio line outputs · 1 balanced output
- Ring connection
- 2-way 8-core aviation connector supports two hand-in-hand ring wiring methods
Reliability & expansion
- Ring hand-in-hand backup
- Failure or replacement of one microphone does not interrupt other microphones
- Audio backup paths
- Microphone digital-analog · hand-in-hand ring · host digital-analog
- AOIP expansion
- Real-time audio interconnection for large conferences or multiple rooms
- System convergence
- Unified wired and wireless conference applications with distributed management
Power & audio performance
- Power
- 110-240 V
- Power consumption
- 10 W
- Maximum power
- 350 W
- Output power
- ≤ 110 W / 24 V per channel
- Audio output impedance
- 100 ohm balanced
- Microphone input
- Impedance: 100 kohm · Level: -60 dB
- Distortion
- < 0.5%
- Signal-to-noise ratio
- > 85 dBA
- Frequency response
- 40 Hz - 20 kHz
- Crosstalk attenuation (1 kHz)
- > 50 dB
Physical & ordering information
- Dimensions
- 483 L × 275 W × 88 H mm
- Model
- JI20M
- Description
- Digital convergence wired conference host - AOIP / TCP-IP, touchscreen, ANC/AFC, voting and camera tracking
- Notes
- Wired / wireless convergence host
Product documentation
JI20M Datasheet
Complete system, network, control, connectivity, audio-performance and physical specifications for the JI20M conference host.
